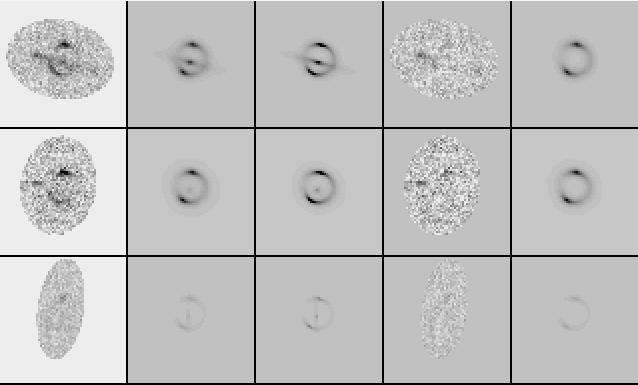

Observed | HST Model | MLE Model | Residual | Lensed source | Filter |
F814W i5.m0 | |||||
F606W v3.m0 | |||||
F450W b7.m0 |
Name | HST 16302+8230 | |||||
Equatorial(J2000) | 16:30:12.9 | +82:29:59 | PAV3=353o.22 | |||
HST WFPC2 | GROTH GTO-PAR:6254 1996-Jun-06 | |||||
Dataset[g][x,y] | U203T[2][110,590] | |||||
MDS Field:id lens galaxy | urg01:0042 | |||||
HST WFPC2 Filter | F814W | F606W | F450W | |||
Exposure seconds | 5 x 1100 | 3 x 900 | 7 x 1157 | |||
log (integrated S/N Ratio) | 2.72 | 2.40 | 1.71 | |||
Fitted Parameter | MLE | +/- rms | MLE | +/- rms | MLE | +/- rms |
Sky Mag. (arcsec2) | 21.898 | 0.003 | 22.371 | 0.002 | 23.133 | 0.007 |
Total Mag of lens galaxy | 23.72 | 0.13 | 25.70 | Dropout | - | |
X centroid 0".1 Pix | 110.52 | 0.08 | 110.26 | 0.09 | 109.66 | 0.36 |
Y centroid 0".1 Pix | 591.75 | 0.05 | 591.81 | 0.06 | 592.69 | 0.18 |
Half-light radius | 1".398 | 0".034 | - | - | - | - |
Orientation of light | 75o.0 | 1o.6 | - | - | - | - |
Axis Ratio of the light | 0.11 | 0.03 | - | - | 0.06 | 0.12 |
Mag. of lensed source | 24.93 | 0.08 | 25.82 | 0.06 | 27.06 | 0.17 |
Source X offset 0".1 Pix | 0.46 | 0.03 | 0.46 | Fixed | 0.46 | Fixed |
Source Y offset 0".1 Pix | 1.34 | 0.05 | 1.34 | Fixed | 1.34 | Fixed |
Critical Radius | 0".734 | 0".004 | 0".734 | Fixed | 0".734 | Fixed |
Axis Ratio Lens mass | 0.86 | 0.02 | 0.86 | Fixed | 0.86 | Fixed |
Lens Orientation | - 79o.0 | 2o.9 | - 79o.0 | Fixed | - 79o.0 | Fixed |
Source half-light | 0".290 | 0".022 | 0".290 | Fixed | 0".290 | Fixed |
Source Orientation | 63o.0 | 18o.6 | 62o.2 | Fixed | 62o.2 | Fixed |
Source Axis-Ratio | 0.74 | 0.10 | 0.74 | Fixed | 0.74 | Fixed |
Lens galaxy from MDS-Pipeline fit
