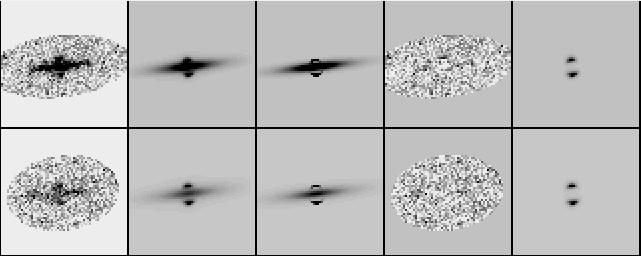

Observed | HST Model | MLE Model | Residual | Lensed source | Filter |
F814W i4.m0 | |||||
F606W v3.m0 |
Name | HST 01248+0351 | |||
Equatorial(J2000) | 01:24:45.6 | +03:51:06 | PAV3=67o.18 | |
HST WFPC2 | GRIFFITHS GO-PAR:6251 1995-Jul-01 | |||
Dataset[g][x,y] | U2OS3701T[3][105,670] | |||
MDS Field:id lens galaxy | uci10:0050 | |||
HST WFPC2 Filter | F814W | F606W | ||
Exposure seconds | 4 x 2700 | 3 x 1600 | ||
log (integrated S/N Ratio) | 2.76 | 2.27 | ||
Fitted Parameter | MLE | +/- rms | MLE | +/- rms |
Sky Mag. (arcsec2) | 20.996 | 0.001 | 21.516 | 0.001 |
Total Mag of lens galaxy | 22.60 | 0.06 | 23.81 | 0.12 |
X centroid 0".1 Pix | 103.87 | 0.10 | 104.13 | 0.13 |
Y centroid 0".1 Pix | 669.64 | 0.04 | 670.19 | 0.04 |
Half-light radius | 1".247 | 0".054 | 1".411 | 0".035 |
Orientation of light | - 83o.7 | 0o.6 | - 83o.5 | 1o.4 |
Axis Ratio of the light | 0.12 | 0.01 | 0.15 | 0.03 |
Mag. of lensed source | 27.78 | 0.14 | 28.53 | 0.13 |
Source X offset 0".1 Pix | 0.05 | 0.02 | 0.04 | 0.02 |
Source Y offset 0".1 Pix | - 0.46 | 0.04 | - 0.48 | 0.04 |
Critical Radius | 0".369 | 0".004 | 0".421 | 0".004 |
Axis Ratio Lens mass | 1.00 | Fixed | 1.00 | Fixed |
Lens Orientation | 0o.0 | Fixed | 0o.0 | Fixed |
Source half-light | 0".011 | 0".003 | 0".010 | 0".003 |
Source Orientation | 0o.0 | Fixed | 0o.0 | Fixed |
Source Axis-Ratio | 1.00 | Fixed | 1.00 | Fixed |
Lens galaxy from MDS-Pipeline fit
